Piranha Premium Kit

$20,085.00

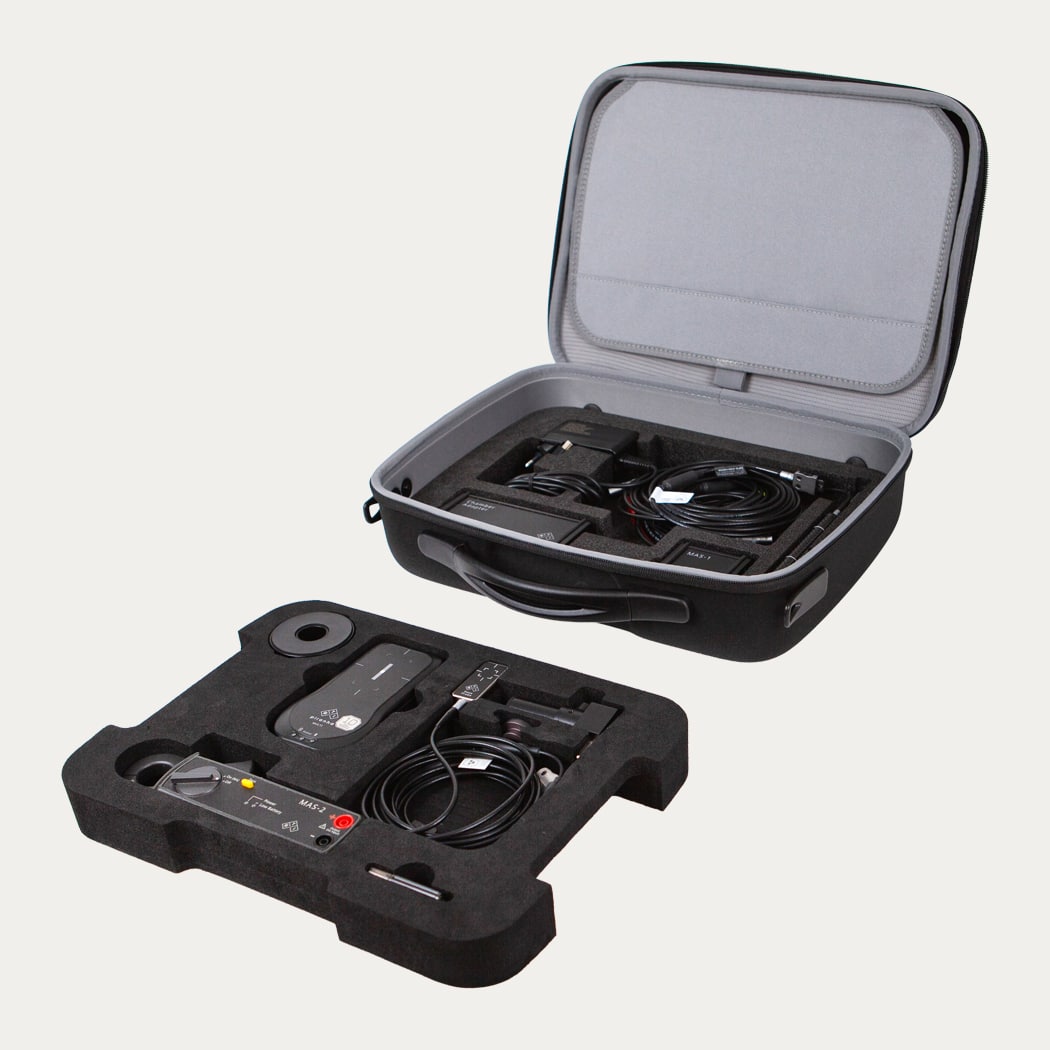

The Premium Kit is based on a Piranha MULTI along with a number of its probes and accessories, well-organized and safely stored in a robust, aluminum case.

The Piranha MULTI is all you need for qualified diagnostics and QA on Rad/Fluoro, CT, Dental, and Mammography X-ray scans. It measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, and presents Waveform.

Read about our pre-paid calibration and extended warranty.

All prices include freight cost. Pricing does not include Applicable Taxes or Customs Fees.

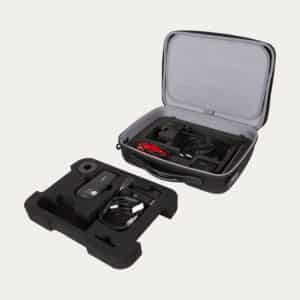

Piranha Premium MAS-1 & CT Dose Profiler
$20,085.00
Included: Dose Probe for input dose to image intensifiers, scattered and leakage radiation. Light Probe for measurements on monitors and for measurement of ambient light. CT Dose Profiler for CTDI measurements. MAS-1 for invasive mA and mAs. Ocean Next Software with Professional license, Aluminum Case and Basic online training. Standard two-year warranty/calibration.

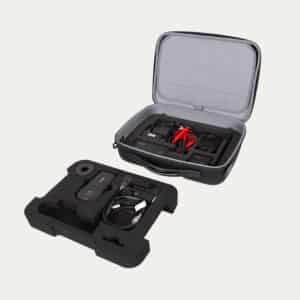

Piranha Premium MAS-1 & CT Ion Chamber
$20,085.00
Included: Dose Probe for input dose to image intensifiers, scattered and leakage radiation. Light Probe for measurements on monitors and for measurement of ambient light. RTI CT Ion Chamber and Chamber Adapter for CTDI measurements. MAS-1 for invasive mA and mAs. Ocean Next Software with Professional license, Aluminum Case and Basic online training. Standard two-year warranty/calibration.

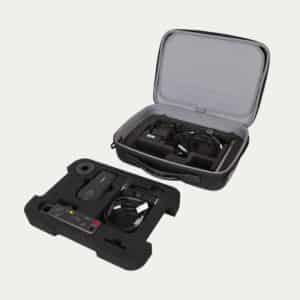

Piranha Premium MAS-2 & CT Dose Profiler
$20,085.00
Included: Dose Probe for input dose to image intensifiers, scattered and leakage radiation. Light Probe for measurements on monitors and for measurement of ambient light. CT Dose Profiler for CTDI measurements. MAS-2 for non-invasive mA and mAs. Ocean Next Software with Professional license, Aluminum Case and Basic online training. Standard two-year warranty/calibration.
Piranha Premium MAS-2 & CT Ion Chamber
$20,085.00
Included: Dose Probe for input dose to image intensifiers, scattered and leakage radiation. Light Probe for measurements on monitors and for measurement of ambient light. RTI CT Ion Chamber and Chamber Adapter for CTDI measurements. MAS-2 for non-invasive mA and mAs. Ocean Next Software with Professional license, Aluminum Case and Basic online training. Standard two-year warranty/calibration.
Clear

The complete solution for QA testing

The Premium Kit is based on a Piranha MULTI along with a number of its probes and accessories, well-organized and safely stored in a robust, aluminum case.

The Piranha MULTI is the complete solution for QA testing in Rad/Fluoro, CT, Dental, and Mammography.

It measures and presents all parameters instantly and simultaneously: kVp; Time; HVL; Total Filtration; Dose; Dose rate; and presents waveforms. Easy & fast X-ray Quality Control!

With the Piranha MULTI, you not only have a compact solution for fast and reliable testing but also extremely accurate measurements that can be used for in-depth analysis.

A complete QA solution
The Piranha MULTI comes ready-to-use with everything you need. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB and you have a complete QA system!

Position Check function
The unique feature of the Piranha MULTI makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.

Ocean Next™ software
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office.

All your measurements, along with the result and the report, will be stored inside your tablet or laptop; there is no unnecessary, time-consuming data transfer.

Piranha MULTI key features

  • All-in-one multifunction X-ray meter
  • One-shot HVL
  • Solid-state detectors = no need to compensate for temperature & pressure
  • Can measure on scanning beams as well as tomosynthesis
  • Optimized for X-ray equipment from a large number of manufacturers
  • Built-in energy compensation
  • Can be used together with ion chambers
  • Wide-range detection of total filtration
  • 100 meters Bluetooth range
  • Unique detector design to minimize position and rotation dependence
  • Automatic recognition of external probes
  • Small, compact, and robust – easy to place
  • Backscatter protected
  • Long-lasting rechargeable battery
  • Always free firmware upgrades
  • Up to ten-year warranty
  • Two-year Calibration Cycle

Piranha MULTI - general specifications

  • Size
    133 x 75 x 26 mm
  • Weight
    Approx. 400 g
  • Display
    PC or Windows Tablet
  • Software
    Ocean Next™ software for X-ray QA
  • Database support
    Yes
  • Interface type
    Built-in Bluetooth and USB
  • Detector Position Check
    Yes
  • Simultaneous Dose Measurements
    Yes - up to two detectors simultaneously
  • Use of Dose Detector with Active AEC
    Yes - RTI Dose Probe or RTI T20
  • Bluetooth range
    100 m free-in-air
  • USB cables
    Included
  • Power source
    Rechargeable Li ion battery / Ext. power supply
  • Battery life
    Approx. 15 hours
  • Battery tested
    According to UN 38.3
  • No. of exposures needed for measurement
    One
  • Min. exposure time
    0.1 ms
  • Memory
    Unlimited
  • Operating temperature
    15 °c – 35 °C
  • Storage temperature
    -10 °C - +50°C
  • Waveform sampling rate
    4 – 2000 samples/s
  • Waveform recording time
    1024 ms – 524 s
  • Backscatter Protection
    Yes - main unit, RTI Dose Probe, and RTI T20
  • Warranty
    Two years
  • Extended Warranty
    Up to ten years
  • Calibration Cycle
    Two years
  • Standard
    Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
  • EMC Tested
    According to IEC 61326-1:2012
  • PTB Approval
    DE-17-M-PTB-0070

Piranha MUTLI - specifications for Radiography & Fluoroscopy

  • Tube Voltage
    35 – 160 kV (±1.5 %)
  • PPV
    Yes
  • Time
    0.1ms – 2000 s (±0.5 % or ±0.5 ms)
  • Dose
    1.3 nGy – 650 Gy. 150 nR – 74 kR. (±5 %)
  • Dose Rate
    15 nGy/s – 320 mGy/s (±5 % or ±7 nGy/s)
    1.7 μR/s – 37 R/s (±5 % or ±0.8 μR/s)
  • Auto Compensation
    All dose parameters are automatically compensated for using measured kVp and TF over their specified ranges.
  • HVL
    0.72 – 13 mm Al (±10 % or ±0.2 mm)
  • Total Filtration
    1.0 – 90 mm Al (±10 % or ±0.3 mm)
  • Pulses
    1 – 65535 pulses (±1 pulse)
  • Dose/pulse
    8 nGy/pulse – 0.9 Gy/pulse
  • Pulse Rate/Frequency
    0.5 – 180 Hz
  • Pulse width
    4 ms – 2000 s

Piranha MULTI - specifications for Mammography

  • Tube Voltage
  • Target/Filter: Mo / 30 μm Mo
    Range: 18 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target/Filter: Mo / 25 μm Rh
    Range: 20 – 46 kV
    Inaccuracy: ±1 kV
  • Target Filter: Rh / 25 μm Rh
    Range: 25 – 49 kV
    Inaccuracy: ±1 kV
  • Target Filter: Rh / 1.0 mm Al
    Range: 22 – 35 kV
    Inaccuracy: ±1 kV
  • Target Filter: W / 50 μm Rh
    Range: 20 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %0,
  • Target Filter: W / 0.50 mm Al
    Range: 20 – 48 kV
    Inaccuracy: ±1 kV
  • Target Filter: Mo / 1.0 mm AI
    Range: 18 – 49 kV
    Inaccuracy: ±1 kV
  • Target Filter: W / 50 μm Ag
    Range: 20 – 40 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: W / 75 μm Ag
    Range: 20 – 40 kV
    Inaccuracy: ±1 kV
  • Target Filter: W / 50 μm Rh (Gio)
    Range: 22 – 35 kV
    Inaccuracy: ±1 kV
  • Target Filter: W / 50 μm Rh (Gio)
    Range: 22 – 35 kV
    Inaccuracy: ±1 kV
  • Target Filter: W / 0.70 mm Al
    Range: 20 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: W / 50 μ m Ag (Sel)
    Range: 22 – 39 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: W / 50 μ m Rh (Sel)
    Range: 22 – 39 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: W / 0.30 mm Cu
    Range: 40 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: W / 0.70 mm Al (Inno/Crist)
    Range: 20 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: W / 50 μ m Rh (Inno/Crist)
    Range: 20 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: Mo / 25 μ m Rh (Sel)
    Range: 20 – 46 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: Rh / 30 μm Ag (GE)
    Range: 27 – 40 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: Rh / Ag IQST (GE)
    Range: 31 – 37 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: Mo / 0.25 mm Cu (GE)
    Range: 40 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: Rh / 0.25 mm Cu (GE)
    Range: 40 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter:Mo / 30 μm Mo (GE)
    Range: 22 – 32 kV
    Inaccuracy: ±1 kV
  • Target Filter: Affirm Prone W / 50 μm Ag
    Range: 20 – 40 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Target Filter: Affirm Prone W / 0.70 mm Al
    Range: 20 – 49 kV
    Inaccuracy: ±0.5 kV or ±1.5 %
  • Time
    0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
  • Dose
    1 nGy – 1000 Gy. 3 µR – 150 kR (±5 %)
  • Dose Rate
    25 nGy/s – 530 mGy/s (±5 % or ±12 nGy/s)
    30 μR/s – 60 R/s (±5 % or ±1.5 μR/s)
  • HVL Range
    0.19 – 4.3 mm Al (depending on Target/Filter combination) (±10 %)
  • Pulses
    1 – 65535 pulses (±1 pulse)

Piranha MULTI - specifications for CT

  • Tube Voltage
    45 – 155 kV (±1.5 %)
  • Time
    0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
  • Total Filtration
    1 – 90 mm Al (±10 % or ±0.3 mm)
  • HVL
    1.2 – 14 mm Al (±10 % or ±0.2 mm)
  • Pulses
    1 – 65535 pulses (±1 pulse)

Piranha MULTI - specifications for Dental

  • Tube Voltage
    35 – 125 kV (±1.5 %)
  • PPV
    Yes
  • Time
    0.1ms – 2000 s (±0.5 % or ±0.5 ms)
  • Dose
    1.3 nGy – 650 Gy. 150 nR – 74 kR. (±5 %)
  • Dose Rate
    15 nGy/s – 320 mGy/s (±5 % or ±7 nGy/s). 1.7 μR/s – 37 R/s (±5 % or ±0.8 μR/s)
  • Auto Compensation
    All dose parameters are automatically compensated for using measured kVp and TF over their specified ranges.
  • HVL
    1.2 – 14 mm Al (±10 % or ±0.2 mm)
  • Total Filtration
    1.0 – 90 mm Al (±10 % or ±0.3 mm)
  • Pulses
    1 – 65535 pulses (±1 pulse)
  • Dose/pulse
    8 nGy/pulse – 0.9 Gy/pulse
  • Pulse Rate/Frequency
    0.5 – 180 Hz
  • Pulse width
    4 ms – 2000 s

Piranha MUTLI - specifications with RTI Dose Probe

  • Size
    20 x 45 x 7.4 mm, 0.79" x 1.8" x 0.29"
  • Weight
    85 g (3 oz)
  • Cable length
    2.0 m (6.6 ft)
  • Backscatter protected
    Yes
  • Dose
    100 pGy – 1.5 kGy. 12 nR – 170 kR (± 5%)
  • Dose Rate
    40 nGy/s – 150 mGy/s (±5 % or ±10 nGy/s)
    4.6 μR/s – 16 R/s (±5 % or ±1 μR/s)
    260 μR/min – 1000 R/min (±5 % or ±6 μR/min)
  • Time
    0.1 ms – 34000 s (±1 % or ±0.5 ms)
  • Pulses
    1 – 65535 pulses (±1 pulse)
  • Dose per pulse
    1 nGy/pulse – 0.3 Gy/pulse
  • Pulse rate/frequency
    0.5 – 100 Hz
  • Pulse width
    4 ms - 2000 s

Piranha MUTLI - specifications with MAS-1

  • Type
    MAS-1B
  • Current range
    0.1–3000 mA
  • Inaccuracy
    ±1 % or ±0.01 mA
  • Frequency range
    DC–500 Hz (-3 dB)
  • Size
    60 x 35 x 72 mm
  • Weight
    125 g
  • Battery life
    Around 100 h
  • Rechargeable battery
    With mini-USB connector
  • Cable length
    4 m (extension available)
  • Connector
    Hirose

Piranha MULTI - specifications with MAS-2

  • Type
    MAS-2
  • Current range
    10 - 4000 mA
  • Inaccuracy
    ±5 % or ±2 mA (±3 % at 250 mA)
  • Charge range
    0.1 mAs - 9999 mAs
  • Size
    183 x 61 x 36 mm
  • Connector
    Hirose
  • Maximum cable diameter
    24 mm
  • Power source
    9 V "6LR61" Alkaline battery

Piranha MULTI - specifications with CT Dose Profiler

  • Dose rate range
    67 nGy/s-2.2 Gy/s. 0.46 mR/min - 15000 R/min
  • Inaccuracy
    ±5 % or ±15 nGy/s
  • Spatial resolution
    0.25 mm

Piranha MUTLI - specifications with CT Ion Chamber

  • Air kerma rate
    0.3 mGycm/s to 3 Gycm/s
  • Inaccuracy
    ±5 % or ±0.03 mGycm/s
  • Connector type
    LEMO triaxial
  • Cable
    2 m, low noise triaxial
  • Active volume
    16 cm³
  • Active length
    300 mm
  • Diameter
    12 mm, 12.6 incl O-rings
  • Typical leakage
    ±20 fA
  • Radiation quality
    70 - 150 kV
  • Sensitivity
    30 mGycm/nC
  • Energy Dependence
    ±1 %
