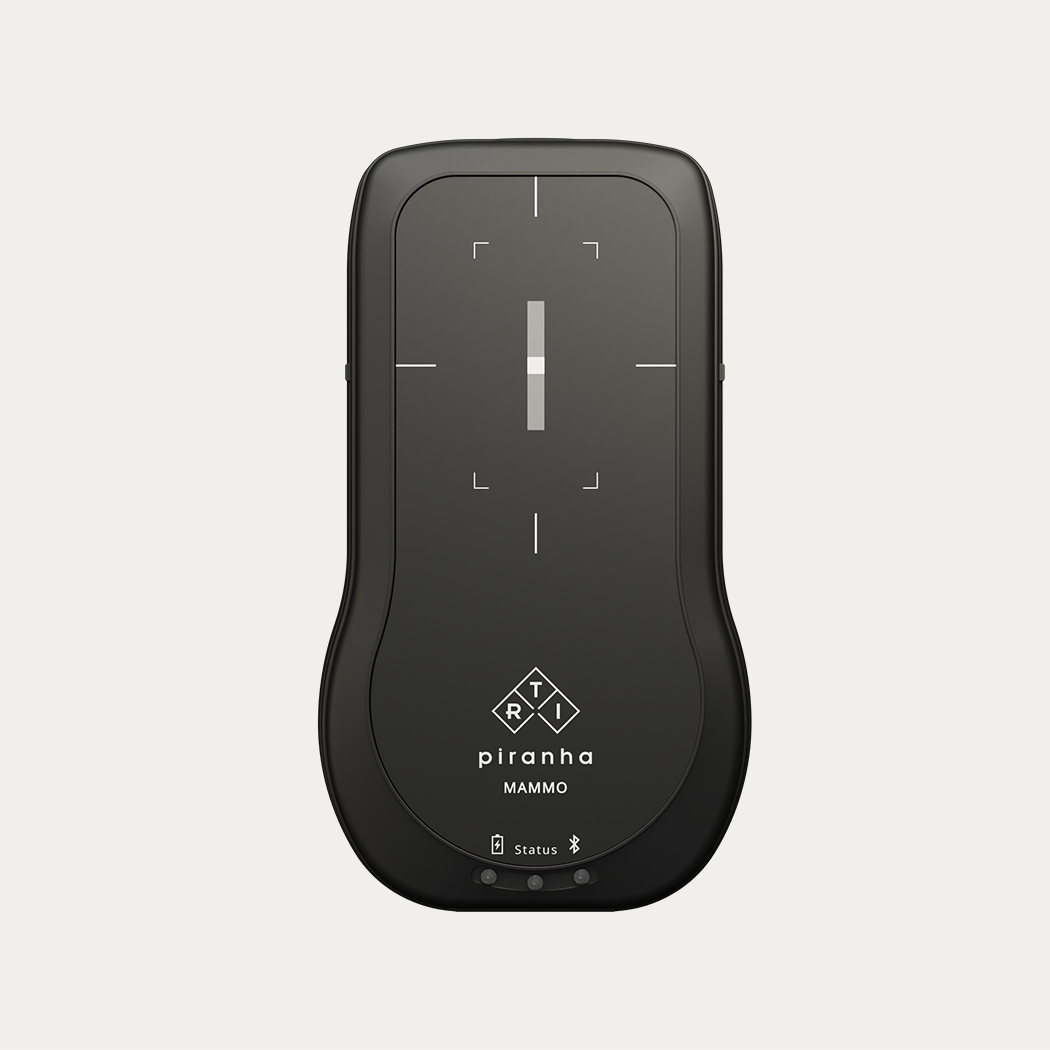

Piranha MAMMO

Name: Piranha MAMMO
SKU: 9729355-00
Availability: InStock

The ultimate solution for Mammography QA testing

The Piranha MAMMO X-ray QA meter is all you need to take QA measurements for any 2D or 3D X-ray system in hospitals or mammography clinics.

Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further information. Easily customize your measurements and reports with Ocean Next™ software.

We are proud that all of our mammography solutions comply with the guidelines and requirements of MQSA, EUREF, IAEA, and ACR to ensure safe and high-quality testing.

Included: internal rechargeable battery, internal Bluetooth & USB port, USB cable, Ocean Next™ software with Advantage license, Power supply, USB Stick, Soft-Shell transport case, and Basic online training.

Standard two-year warranty/calibration. Read about our pre-paid calibration and extended warranty.

All prices include freight cost.

Prices do not include applicable taxes or customs fees. Please check your local import requirements.

Add Voucher Code in the cart.

$12,600

A multifunction meter

The Piranha MAMMO X-ray QA meter comes ready to use with everything you need – an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.

Position check

The unique feature of the Piranha Mammo X-ray QA meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.

Ocean Next™ software

Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office.

All-in-one multifunction X-ray meter
One-shot HVL
Solid-state detectors = no need to compensate for temperature & pressure
Can measure on scanning beams as well as tomosynthesis
Optimized for X-ray equipment from a large number of manufacturers
Built-in energy compensation
Can be used together with ion chambers
Automatic recognition of external probes
Small, compact, and robust – easy to position
Backscatter protected
Long-lasting rechargeable battery
Always free firmware upgrades
Upgradable to any Piranha model
Up to ten-year warranty
Two-year Calibration Cycle

Size	133 x 75 x 26 mm
Weight	Approx. 400 g
Display	PC or Windows Tablet
Software	Ocean Next™ software for X-ray QA
Database support	Yes
Interface type	Built-in Bluetooth and USB
Detector Position Check	Yes
Simultaneous Dose Measurements	Yes - up to two detectors simultaneously
Use of Dose Detector with Active AEC	Yes - RTI Dose Probe or RTI T20
Bluetooth range	100 m free-in-air
USB cables	Included
Power source	Rechargeable Li ion battery / Ext. power supply
Battery life	Approx. 15 hours
Battery tested	According to UN 38.3
No. of exposures needed for measurement	One
Min. exposure time	0.1 ms
Memory	Unlimited
Operating temperature	15 °c – 35 °c
Storage temperature	-10 °c - +50°c
Waveform Sampling rate	4 – 2000 samples/s
Waveform recording time	1024 ms – 524 s
Backscatter Protection	Yes - main unit, RTI Dose Probe, and RTI T20
Warranty	Two years
Extended Warranty	Up to ten years
Calibration Cycle	Two years
Standard	Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
EMC Tested	According to IEC 61326-1:2012
PTB Approval	DE-17-M-PTB-0070

Tube Voltage
	Target Filter: W / Ti Range: 40-49kV Inaccuracy: ±0.5kV or ±1.5%
	Target Filter: Mo / 30 μm Mo. Range: 18 – 49 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: Mo / 25 μm Rh. Range: 20 – 46 kV. Inaccuracy: ±1 kV.
	Target Filter: Rh / 25 μm Rh. Range: 25 – 49 kV. Inaccuracy: ±1 kV.
	Target Filter: Rh / 1.0 mm Al. Range: 22 – 35 kV. Inaccuracy: ±1 kV.
	Target Filter: W / 50 μm Rh. Range: 20 – 49 kV. Inaccuracy: ±0.5 kV or ±1.5 %.
	Target Filter: W / 0.50 mm Al. Range: 20 – 48 kV. Inaccuracy: ±1 kV.
	Target Filter: Mo / 1.0 mm AI. Range: 18 – 49 kV. Inaccuracy: ±1 kV.
	Target Filter: W / 50 μm Ag. Range: 20 – 40 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: W / 75 μm Ag. Range: 20 – 40 kV. Inaccuracy: ±1 kV.
	Target Filter: W / 50 μm Rh (Gio). Range: 22 – 35 kV. Inaccuracy: ±1 kV.
	Target Filter: W / 0.70 mm Al. Range: 20 – 49 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: W / 50 μ m Ag (Sel). Range: 22 – 39 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: W / 50 μ m Rh (Sel). Range: 22 – 39 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: W / 0.30 mm Cu. Range: 40 – 49 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: W / 0.70 mm Al (Inno/Crist). Range: 20 – 49 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: W / 50 μ m Rh (Inno/Crist) Range: 20 – 49 kV Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: Mo / 25 μ m Rh (Sel) Range: 20 – 46 kV Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: Rh / 30 μm Ag (GE) Range: 27 – 40 kV. Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: Rh / Ag IQST (GE) Range: 31 – 37 kV Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: Mo / 0.25 mm Cu (GE) Range: 40 – 49 kV Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: Rh / 0.25 mm Cu (GE) Range: 40 – 49 kV Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter:Mo / 30 μm Mo (GE) Range: 22 – 32 kV Inaccuracy: ±1 kV
	Target Filter: Affirm Prone W / 50 μm Ag Range: 20 – 40 kV Inaccuracy: ±0.5 kV or ±1.5 %
	Target Filter: Affirm Prone W / 0.70 mm Al. Range: 20 – 49 kV. Inaccuracy: ±0.5 kV or ±1.5 %
Time	0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
Dose	1 nGy – 1000 Gy. 3 µR – 150 kR (±5 %)
Dose Rate	25 nGy/s – 530 mGy/s (±5 % or ±12 nGy/s) 30 μR/s – 60 R/s (±5 % or ±1.5 μR/s)
HVL Range	0.19 – 4.3 mm Al (depending on Target/Filter combination) (±10 %)
Pulses	1 – 65535 pulses (±1 pulse)
