Piranha CT

Fast and accurate CT dose measurements

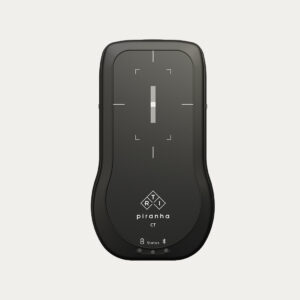

The Piranha CT X-ray QA meter measures and presents all parameters instantly and simultaneously. It measures kVp, Time, Total Filtration, CTDI parameters, dose length product, and presents Waveform.

Several important parameters can also be measured such as CTDI100, CTDIw, CTDIvol, DLP, FWHM, Geometric efficiency, and tube current variations. Choose your Piranha CT with CT Dose Profiler or Ion chamber.

Read about our pre-paid calibration and extended warranty.

All prices include freight cost. Pricing does not include Applicable Taxes or Customs Fees. Add Voucher Code in the cart.

$17,350

Piranha CT – Piranha CT with CTDP
$17,350
Measures kVp, Time, HVL, Total Filtration, CTDI parameters, dose length product and presents Waveform. Included: CT Dose Profiler, internal rechargeable battery, internal Bluetooth & USB port, USB cable, Tablet PC, Ocean Next™ software with Advantage license, power supply, USB Stick, Soft-Shell transport case, and Basic online training. Standard two-year warranty/calibration.
Piranha CT – Piranha CT with Ion Chamber
$17,350
Measures kVp, Time, HVL, Total Filtration, CTDI parameters, dose length product, and presents Waveform. Included: RTI CT Ion Chamber, Chamber Adapter, 10" Tablet PC, internal rechargeable battery, internal Bluetooth & USB port, USB cable, Ocean Next™ software with Advantage license, power supply, USB Stick, Soft-Shell transport case, and Basic online training. Standard two-year warranty/calibration.

A complete QA solution

The Piranha CT X-ray meter comes ready to use with everything you need.  It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.

Position Check feature

The unique feature of the Piranha CT X-ray meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.

CT dose profiles

Use with RTI’s Chamber Adapter, Ion Chamber, and CT Dose Profiler for deep analysis of CT dose profiles.

  1. All-in-one multifunction X-ray meter
  2. Solid-state detectors = no need to compensate for temperature & pressure
  3. Built-in energy compensation
  4. Can be used together with ion chambers
  5. Wide-range detection of total filtration
  6. 100 meters Bluetooth range
  7. Unique detector design to minimize position and rotation dependence
  8. Automatic recognition of external probes
  9. Small, compact, and robust – easy to position
  10. Backscatter protected
  11. Long-lasting rechargeable battery
  12. Always free firmware upgrades
  13. Upgradable to any Piranha model
  14. Up to ten-year warranty
  15. Two-year Calibration Cycle
  1. Size 133 x 75 x 26 mm
    Weight Approx. 400 g
    Display PC or Windows Tablet
    Software Ocean Next™ software for X-ray QA
    Database support Yes
    Interface type Built-in Bluetooth and USB
    Detector Position Check Yes
    Simultaneous Dose Measurements Yes - up to two detectors simultaneously
    Use of Dose Detector with Active AEC Yes - RTI Dose Probe or RTI T20
    Bluetooth range 100 m free-in-air
    USB cables Included
    Power source Rechargeable Li ion battery / Ext. power supply
    Battery life Approx. 15 hours
    Battery tested According to UN 38.3
    No. of exposures needed for measurement One
    Min. exposure time 0.1 ms
    Memory Unlimited
    Operating temperature 15 °c – 35 °c
    Storage temperature -10 °c - +50°c
    Waveform Sampling rate 4 – 2000 samples/s
    Waveform recording time 1024 ms – 524 s
    Backscatter Protection Yes - main unit, RTI Dose Probe, and RTI T20
    Warranty Two years
    Extended Warranty Up to ten years
    Calibration Cycle Two years
    Standard Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
    EMC Tested According to IEC 61326-1:2012
    PTB Approval DE-17-M-PTB-0070
  2. Tube Voltage 45 – 155 kV (±1.5 %)
    Time 0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
    Total Filtration 1 – 90 mm Al (±10 % or ±0.3 mm)
    HVL 0.72 – 13 mm Al (±10 % or ±0.2 mm)
    Pulses 1 – 65535 pulses (±1 pulse)
  3. Dose rate range 67 nGy/s-2.2 Gy/s. 0.46 mR/min - 15000 R/min
    Inaccuracy ±5 % or ±15 nGy/s
    Spatial resolution 0.25 mm
  4. Air kerma rate 0.3 mGycm/s to 3 Gycm/s
    Inaccuracy ±5 % or ±0.03 mGycm/s
    Connector type LEMO triaxial
    Cable 2 m, low noise triaxial
    Active volume 16 cm³
    Active length 300 mm
    Diameter 12 mm, 12.6 incl O-rings
    Typical leakage ±20 fA
    Radiation quality 70 - 150 kV
    Sensitivity 30 mGycm/nC
    Energy Dependence ±1 %
